The "patented solution" for easy coupling

No damages, no down time!

QuickOn^® tongs: super-fast changing.
Exchanging attachment tools must be fast: We often see a build-up of residual pressure when a machine rests, which makes it nearly impossible to reconnect hose fittings by use of one's physical strength only. Using a hammer now would damage the coupling and thus cause the environmentally harmful leakage of hydraulic oil. The solution for this are our QuickOn^® tongs. They allow safe and damage-free coupling in any situation, with all machines and types of couplings.

Quick coupling
No oil losses
Great durability

SOLUTION FOR EVERYDAY PROBLEMS

QUICKON^® OFFERS SOLUTIONS FOR AN OPERATOR’S DAILY CHALLENGES.
‍
Many operators working with various types of attachment tools have to loosen and reconnect couplings several times per day. The pressure often building up there is well-known to everybody dealing with this on a daily basis, with all its consequences: It is impossible to connect the coupling without a huge exertion of strength and a hammer gets used.

The problem is exacerbated when height or position make the coupling even less accessible, and by the fact that the attachment tool's piping is exposed to wind and weather and also suffers. Consequently, when changing, the coupling is easily damaged, hydraulic oil leaks and causes environmentally harmful pollution of the soil. QuickOn^® tongs are the solution for all these challenges.

ONE TOOL TO HANDLE IT ALL

QUICKON^® INCREASES THE DURABILITY OF ALL CURRENTLY USED COUPLINGS.

The QuickOn^® tongs work quite easily: The coupling is gripped with the two robustly forged, 3mm thick grippers made of fine grain steel which are then simply squeezed together. With the pressure released from the coupling's locking mechanism, the coupling can be easily and effortlessly used. This also works under a high residual pressure of up to 100 bar.

The wide opening of more than 310mm ensures that the QuickOn^® tongs can also handle very large couplings. The adapter washer with plug-in and screw connections adapts the QuickOn^®tongs to smaller adapters. The optimal linear guiding protects the coupling and thus increases its service life leading to considerable cost savings for the company.

Our QuickOn Tongs' effectiveness

High Robustness

The QuickOn^®tongs are designed in such a way that they can withstand any use. The grippers are made of high-quality steel and are equipped with an adapter washer made of fine-grain steel for use with small couplings.

Constant Work Rhythm

Quick changing without damage, made possible by our QuickOn^®tongs, ensures that work need only be interrupted very shortly when changing attachment tools.

Environment

Our QuickOn^®tongs avoid damage caused by improper coupling and subsequent oil loss and pollution.

Cost Savings

Due to the optimal linear guiding of the couplings, hydraulic couplings need to be replaced less often. Not only does this cut down on your costs, it also reduces expensive down time of your machine.

Our QuickOn Tongs' Range of application

As soon as attachment tools must be changed, this is hardly doable without our QuickOn^®tongs. Not only do they make changing much quicker, but also prevent damage to the couplings and associated environmental pollution.

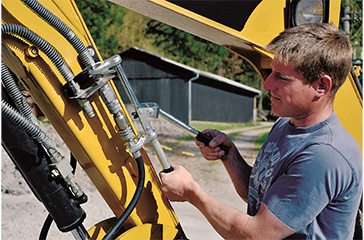

Construction Machinery

Today, excavators are used mostly as multi-functional tool carriers. Often in combination with attachment tools for the most diverse applications which have to be changed several times per day. This is exactly where the QuickOn^® tongs help you save time.

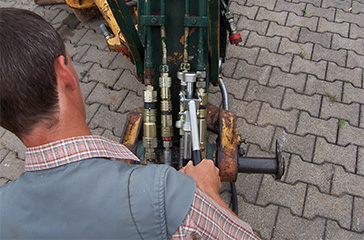

Municipal and Communal Vehicles

Municipal and communal machine pools are often very diverse. Multi-functionality is very important here and machines must be usable with various attachment tools. Changing of these tools is simply much quicker and safer with our QuickOn^® tongs.

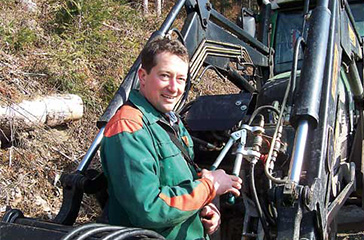

Farming Equipment

By using appropriate attachment tools, even tractors etc. perform tasks outside of their usual comfort zone. Changing the tools is easy with our QuickOn^® tongs.

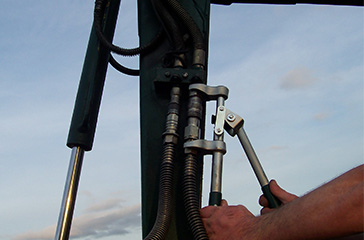

Forestry Equipment

By means of KranFix^® , a forest crane is turned into a multi-functional carrier system which can be used much more efficiently with other attachment tools. Swift and safe changing is easy with our QuickOn^® tongs.

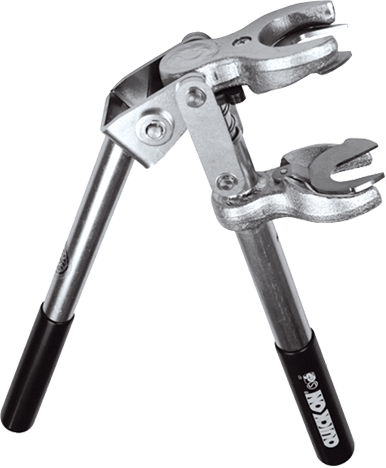

The Technology

The QuickOn^® tongs‘ advantages at a glance.

Robust design, easy use, enormous time savings
With our QuickOn® tongs you can couple at far more than 100 bar and that even in confined spaces
The optimal linear guiding of the couplings increases the durability of the couplings

1. One tool for different coupling sizes and makes.

2. Suitable for all flat face couplings.

3. Secure, anti-slip grip.

4. Opening width of more than 310mm.

5. Adapter washer 3mm x 19-36 (can be plugged or screwed).

6. Continuous adjustment through light pressing.

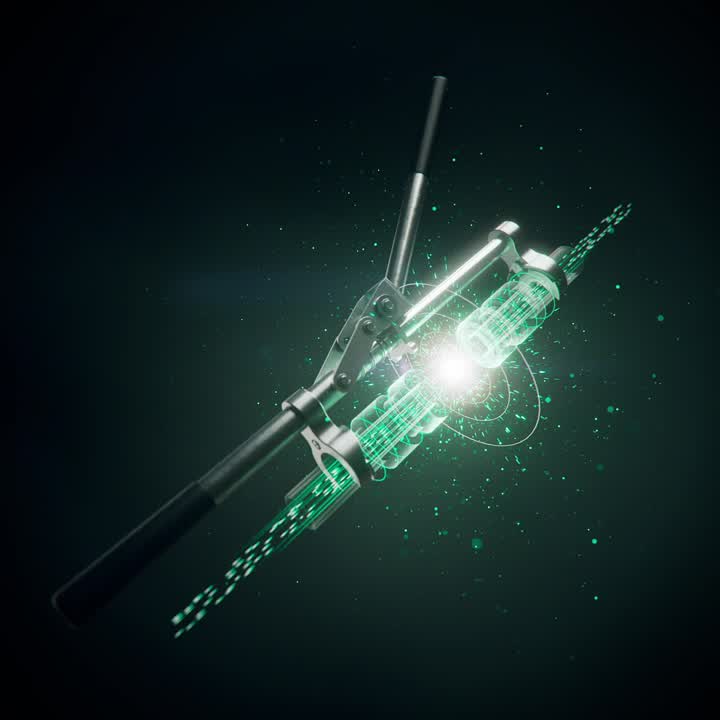

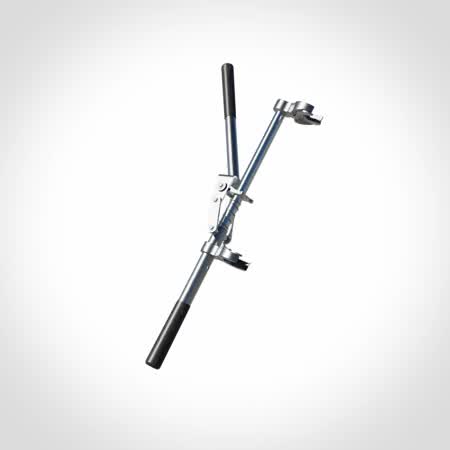

Videos of QuickOn Tong

Here you can find animations and video clips on the functioning and use of our QuickOn^®. Or simply stop by and try it directly in our Test Arena in Murrhardt-Fornsbach/Germany.

Downloads

Quick and easy download of the most important documents and information on our QuickOn^®:

Product Catalogue (12.7 mb)

Technical Data QuickOn (845 kb)
